自清洗過濾器
外刮刀式自清洗過濾器
發表時間：2018-06-19 10:00:23

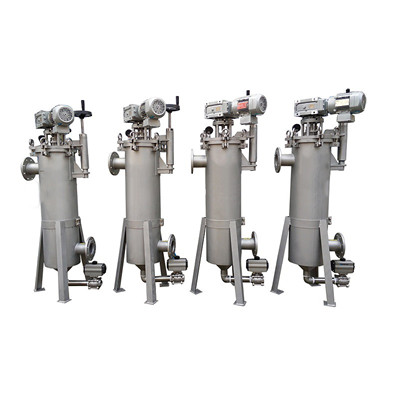

外刮刀式自清洗過濾器
工作原理
當液體流經過濾器濾網時，雜質被濾網攔截在表面，啟動刮刀清除表面雜質，通過排污口排出，實現自清洗過濾。
★ 全自動運行，24小時連續在線過濾，終結繁重的濾元更換清洗工作
★ 不產生一次性拋棄的過濾耗材，節約耗材成本及環保處理成本
★ 采用金屬薄片刮刀，刮除耗材成本及環保處理成本
★ 頂級品質的V-SLOT濾元，縫隙精準，表面極致平滑，易刮凈，強度高，長壽命
★ 過濾壓損極小，流量穩定，節省管路能耗，利于工藝連續穩定
★ 密閉過濾，防止危險性物料泄露，有利于安全生產
★ 排放廢液雜質濃度高并可回收，避免高價值物料的損失
★ 多種模塊組合及自動化模式可選，滿足各種過濾應用要求
★ 標配國際知名品牌減速電機，極高可靠性，長使用壽命
參數
★ 最大流量：82m3/h（100μm）
★ 過濾精度：50~3000微米。
★ 最大粘度：50000 厘泊
★ 材質：不銹鋼304，316L等。
★ 最高工作溫度：160OC 。
★ 最高工作壓力：1.0Mpa。
★ 排污控制：壓差控制或時間控制
★ 電機功率：渦輪蝸桿減速電機100W-250W 三相 380V
Technical Feature
Outside Scraping Self-Cleaning Filter removes particles from the filter element surface by the efficiently mechanical scraping, can work on-line continuously, consumes no disposal filter media, requires no frequent manual cleaning, is capable of the filtration for normal viscous liquids.
1. Automatic 24-hour on-line filtration, no frequent changing out and cleaning
2. No disposable filter media consumption, save filter media cost and environment cost.
3. Stainless steel scraping blade, good impurity removing performance .
4. Top quality V-SLOT filter element, accurate slots, extremely smooth, easy to scrap.
5. Very low pressure drop, stable flow rate, save energy consumption.
6. back-flushing function can be added to help clean the filter element.
7. Close filtration, no dangerous liquid leakage, good for safe production.
8. Discharge waste liquid with high impurity concentration, avoid valuable liquid loss.
9. Various modular combination and automation modes available, meet different filtration needs.
10. Equiped with world-famous gear motor, high reliability and long service life .
11. Assitant lifting device , only one operator can open and close the filter cover.
Specification
★ Flow rate max：82m3/h（100μm）
★ Filtration precision：50~3000 μm
★ Viscosity：50000 cps
★ Material：SS 304，316L etc
★ Work temperature max ：160OC
★ Work pressure max：1.0Mpa
★ Blow -off control：pressure difference control and time control
★ Motor：worm geared motor 100W-250W; 380V
